產品中心

四點接觸球軸承
四點接觸球軸承

公制等截面薄壁四點接觸球軸承


  • 公制等截面薄壁四點接觸球軸承,X型四點角接觸球軸承與A、C型軸承的區別在于其滾珠溝槽的形狀。深溝槽深度與四點接觸結構使軸承能夠承受徑向、軸向載荷以及扭矩載荷。類似于一對A型軸承的背對背組合。

bearing@hyzcgroup.com

18837917076

  • 產品詳情

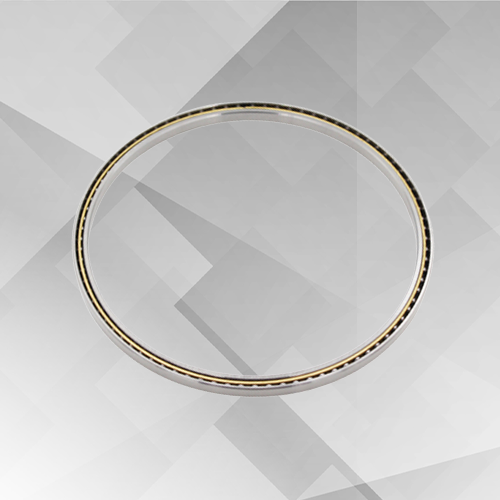

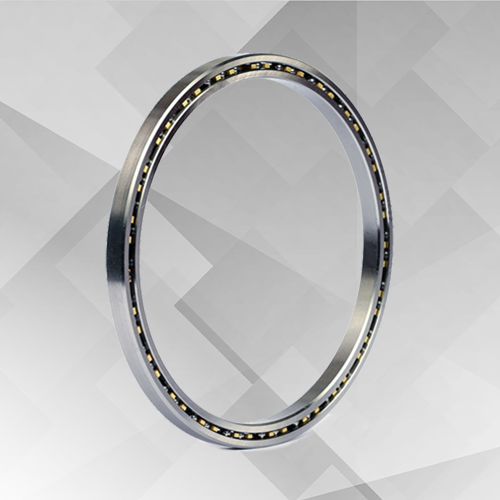

公制等截面薄壁四點接觸球軸承

X型四點角接觸球軸承與A、C型軸承的區別在于其滾珠溝槽的形狀。深溝槽深度與四點接觸結構使軸承能夠承受徑向、軸向載荷以及扭矩載荷。類似于一對A型軸承的背對背組合。


8mm系列 X型  四點接觸球軸承
軸承型號主要尺寸基本額定載荷(KN)
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷力矩靜載荷力矩動載荷
HX2508
HX2508UU
254183.273.247.434.600.480.39
HX5008
HX5008UU
506685.444.5113.616.531.550.96
HX6008
HX6008UU
607686.434.9616.087.302.151.24
HX7008
HX7008UU
708687.425.3818.568.032.841.55
HX8008
HX8008UU
809688.425.7921.038.723.631.87
HX9008
HX9008UU
9010689.406.1823.519.404.522.23
HX10008
HX10008UU
100116810.396.5725.9810.055.512.61
HX11008
HX11008UU
110126811.396.9328.4510.686.593.01
HX12008
HX12008UU
120136812.377.2830.9311.297.763.43
HX13008
HX13008UU
130146813.367.6230.9311.889.053.87
HX14008
HX14008UU
140156814.367.9635.8812.4610.424.33
HX15008
HX15008UU
150166815.348.2938.3613.0211.894.82
HX16008
HX16008UU
160176816.338.6040.8313.5813.465.32
HX17008
HX17008UU
170186817.328.9243.3014.1215.125.84
HX18008180196818.319.2245.7814.6516.886.38
HX19008190206819.059.4447.6315.0518.506.87
HX20008200216820.049.7250.1115.5620.447.44
HX25008250266824.9911.1062.4818.0331.6110.54
HX30008300266829.9412.3674.8520.3445.2214.00
HX32008320336831.9212.8479.8021.2351.3315.48
HX34008340356833.9013.2384.7522.1057.4216.93
HX36008360376835.6313.6889.0722.8364.3018.52




13mm系列 X型  四點接觸球軸承
軸承型號主要尺寸基本額定載荷(KN)
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷力矩靜載荷力矩動載荷
HX25132551136.826.7512.678.520.940.94
HX50135076139.018.9222.1812.012.742.07
HX601360861310.779.9426.9214.073.852.67
HX701370961312.0310.5330.0915.164.903.21
HX8013801061313.3111.1033.2516.206.073.80
HX9013901161315.2012.0038.0017.727.684.55
HX100131001261316.4712.5341.1718.689.125.21
HX110131101361318.3813.3745.9220.0911.086.05
HX120131201461319.6613.8749.1021.0112.816.79
HX130131301561320.9014.3752.2621.9014.667.56
HX140131401661322.8015.1357.0123.2117.118.52
HX150131501761324.0715.6060.1824.0619.249.35
HX160131601861325.3416.0663.3524.9021.4910.22
HX170131701961327.2416.7768.1026.1324.4411.29
HX180131802061328.5117.2171.2726.9326.9812.22
HX190131902161329.7717.6474.4327.7229.6413.17
HX200132002261331.6718.3179.1828.8933.0814.35
HX250132502761339.2820.7798.193.333 516820.09
HX300133003261346.2522.80115.603.714 724226.26
HX320133203461349.4123.71123.533.886 823229.04
HX340133403661352.5824.58131.444.053 928631.92
HX360133603861355.7425.42139.364.207941.9534.89



20mm系列 X型  四點接觸球軸承
軸承型號主要尺寸基本額定載荷(KN)
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷力矩靜載荷力矩動載荷
HX252025652014.8814.7324.9417.532.212.21
HX502050902018.0817.9039.1923.705.384.61
HX6020601002018.6818.4942.7625.116.715.45
HX7020701102020.3020.0949.8827.828.816.65
HX8020801202021.3720.6953.4529.1410.497.61
HX9020901302024.2422.1860.5731.6613.078.98
HX100201001402025.6622.7764.1432.9015.0910.05
HX110201101502028.5124.1771.2735.2918.1711.55
HX120201201602031.3625.5178.3937.6021.5213.14
HX130201301702032.7826.0781.9638.7424.1114.39
HX140201401802035.6327.3589.0840.9527.9516.10
HX150201501902037.0527.8892.6442.0430.8917.43
HX160201602002039.9129.1199.7644.1735.2219.28
HX170201702102042.7629.63106.8946.2538.5020.71
HX180201802202044.1830.80110.4647.2743.3322.66
HX190201902302047.0431.95117.5949.2848.4324.69
HX200202002402048.4632.43121.1550.2752.2726.24
HX250202502902059.8636.56149.6657.8879.2536.32
HX300203003402071.2740.37178.1565.00111.8247.52
HX320203203602075.5441.70188.8567.59125.9352.17
HX340203403802079.8143.00199.5470.11140.8856.96
HX360203604002084.0944.28210.2372.60156.6861.90
